45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die

  • 1
  • 2

Place of Origin : Anhui, China

Brand Name : LYNCCN

Model Number : LS20

Packaging Details : The most popular 45-50HRC hardness steel CNC punch forming die press brake tooling

Supply Ability : 500 Pieces/Month

Price : $100.00 - $800.00/sets

Shaping Mode : Forging Mould

Product Material : Steel

Product : press brake tooling

Name : Customization CNC Punch Forming Die Amada Press Brake Tooling

Material : 42CrMo

Hardness : 45-50HRC

Color : Metallic

Precision Level : Very High

Application : Used on press brake machine

Package : Wooden Box

Delivery Time : 20-35 days

OEM : Available

Port : Shanghai

Contact Now

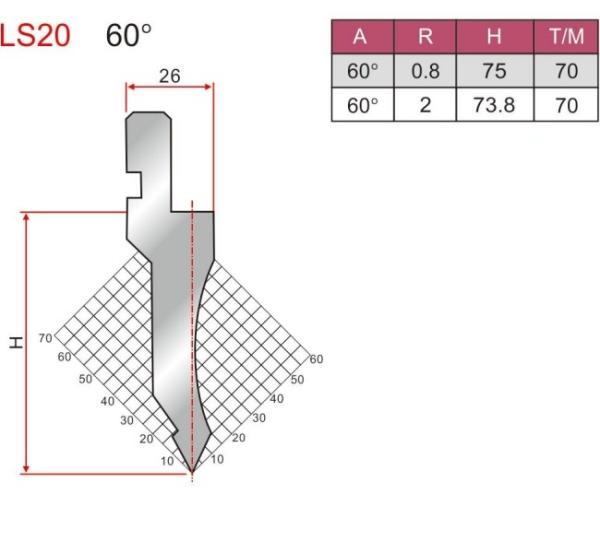

LS20 60° The most popular 45-50HRC hardness steel CNC punch forming die press brake tooling
Product Description
Press brake tool. It is a tool used by the bending machine to form and process sheet metal. This tool consists of various parts, and different molds consist of different parts. It mainly realizes the processing of the shape of the article by changing the physical state of the formed material. A tool used to make a blank into a specific shape and size under the pressure of a bending machine.
Name
Press Brake Tooling
Material
42CrMo
Color
Metallic
Size
Customizable sizes
Hardness
45-50HRC
Precision Level
Very High
Package
Wooden crate with soft film layers inside
Used
Used on press brake machine
Standard
AMADA, European, Segmented, Arc, International Standard, Three Point, Non-Streaking, Adjustable Groove, Special, etc
Certification
ISO9001

Support customization, please let us know your requirements
1. Material
2. Forging 3. a, Miller Processing(if your products are small) b, Planer Processing(if your products are large) 4. Precisional Grinder Processing 5. Finished Products 6. Measuring 7. Packing: Wooden crate with soft film layers inside 8. Delivery Details : Shipped in 20 days after payment

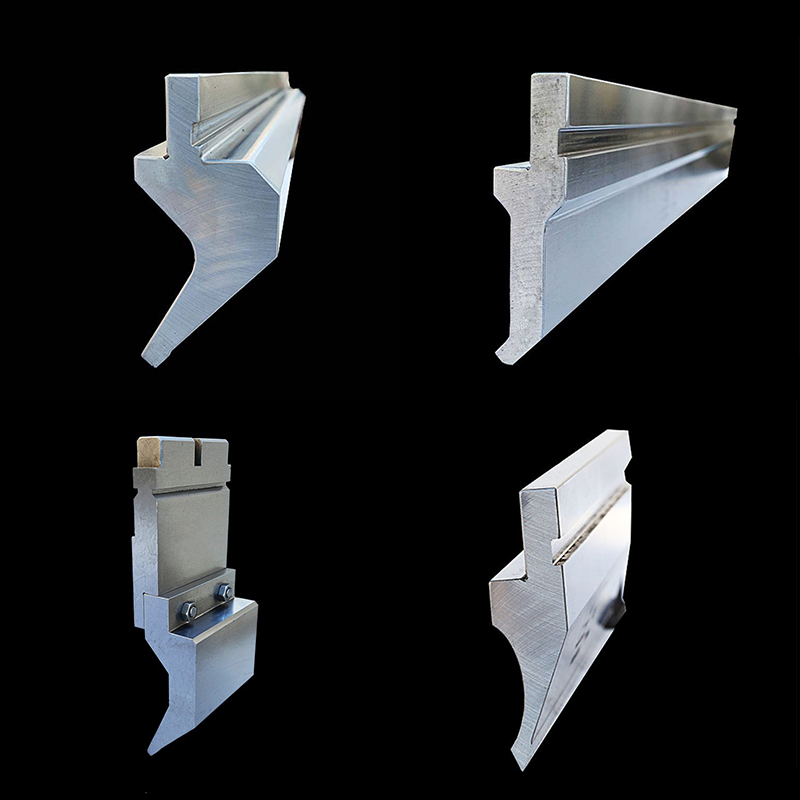

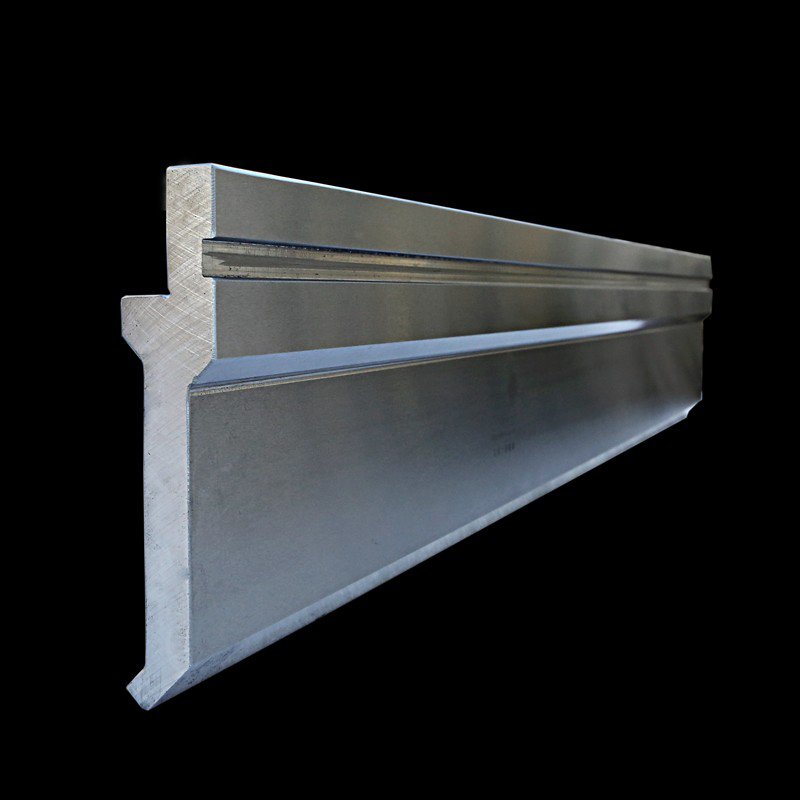

Products Show
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die

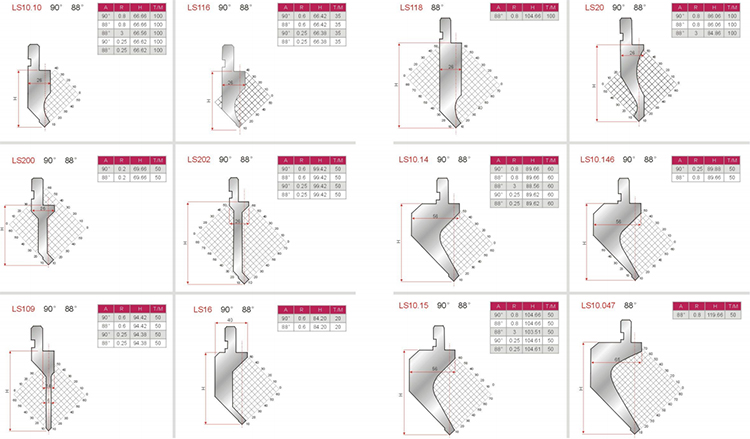

Standard mould
1. When ordering a standard mold, first select the shape of the mold.
2. Provide the total length, angle, sharp R, die height, etc
3. The mold that needs to be divided can be divided into dimensions

Special forming mould
1. Provide the cross section shape drawing of product workpiece
2. Provide bending machine manufacturer, machine tonnage, machine length and other relevant data.
3. Provide product material, plate thickness and other data.
4. Put forward product requirements (such as scratch, R angle size, parallelism, straightness)
5. Provide product materials (for mold test)
6. If there is any difficulty in selecting the mould, please consult us.
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
Product Categories
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
Our Company
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
Exhibition & Certificate
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
Packaging
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
FAQ
1. Can you put my brand name (logo) on these products?
Yes we can, but only for products length less than 1000mm.

2. When can you ship the products after we make payment?
Production time is normally 10-25 days. We will deliver your products to port in 2 days

3. What is the Minimum Order Quantity (MOQ) for your OEM service?
MOQ:1pcs

4. How can you guarantee the quality?
We are the only constitutor of Chinese National Press Brake Mold Industry Standard. We will offer you 3 months guarantee once you purchase from us. We have IQNET Certificate.

5. Is it possible to visit your company? How can I get there?
We would love to have you. We can send you invitation for VISA application and we will collect you in Nanjing Airport or Railway station.
45HRC-50HRC CNC Press Brake Tooling LS20 Punch Forming Die
